5000W Ebike Kit: What a 72V Conversion Can Really Do

TL;DR: Key Takeaways From the JoyOnWheels 72V Build

A 5000W ebike kit is not just a stronger commuter conversion. Based on the JoyOnWheels video title, source metadata, and supplied keywords for a 72V 5000W conversion kit, this type of build sits much closer to a light electric motorbike or minibike-style machine than a normal pedal-assist bicycle.

You can watch the original JoyOnWheels video here: 5Kw Ebike Kit Can Do…. The creator frames the ride around high-power mixed use, with keywords including conversion kit 72v 5000w, grass ride, traffic ride, Kukirin G4, Kukirin G4 Max, and minibike.

The supplied transcript does not include full spoken captions, so this article avoids pretending the creator made claims that are not in the provided text. Instead, it uses the verified metadata at 00:00 as the anchor and adds practical buying, safety, and setup context you can use before spending money.

• Expect serious torque: watts equals about 6.7 horsepower, which is far above common 250W, 500W, or 750W e-bike classes.
• The battery matters as much as the motor: 5000W divided by 72V equals about 69.4 amps before losses, so weak packs, undersized connectors, or poor BMS choices are risky.
• Brakes are not optional upgrades: at minibike-like speeds, hydraulic discs, larger rotors, quality pads, and tire condition become safety essentials.
• Road legality is a real concern: many places cap legal e-bikes at 750W in the U.S. or 250W in the EU pedelec category, far below this setup.
• Best use case: private land, controlled testing areas, off-road paths where permitted, or experienced DIY riding—not casual sidewalk commuting.

What JoyOnWheels Is Testing With This 5000W Ebike Kit

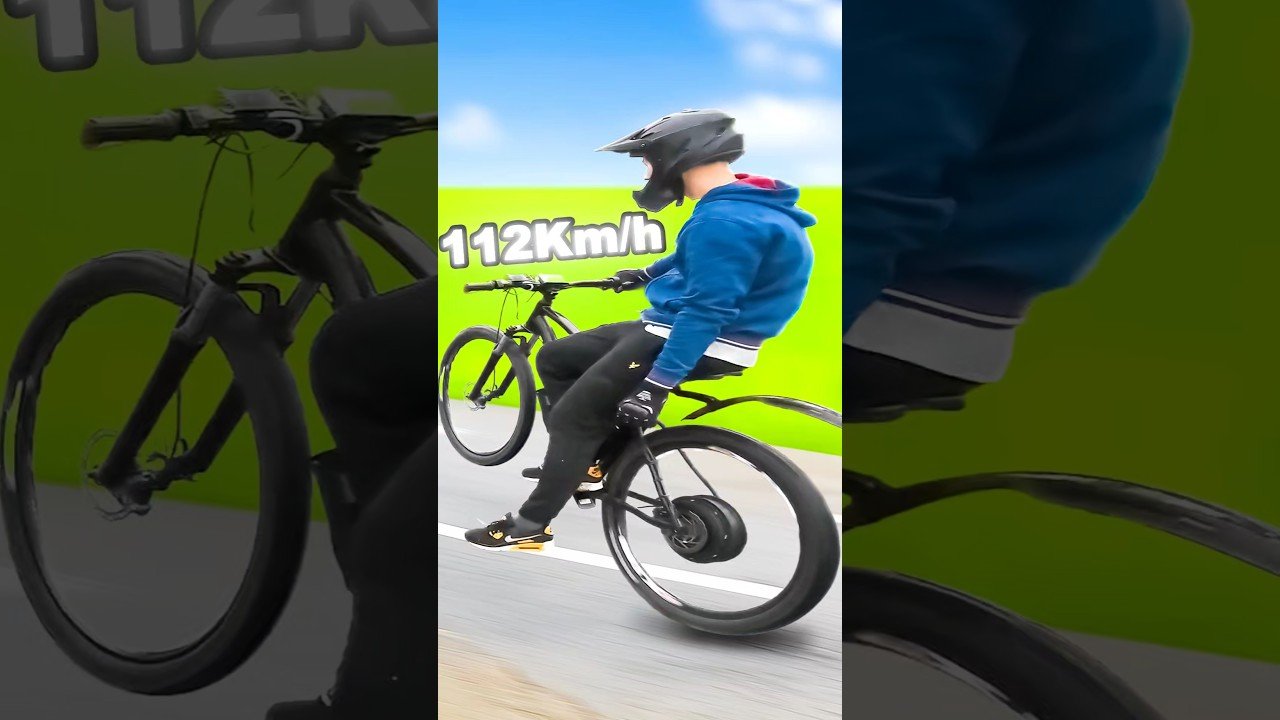

The JoyOnWheels upload titled 5Kw Ebike Kit Can Do… points to a 5000W ebike kit built around a 72V conversion system. According to JoyOnWheels’ metadata, the video connects this build with Arad, JoyOnWheels, Kukirin G4, grass riding, traffic riding, and minibike-style use. That tells you the content is not about a mild city e-bike. It is about seeing what a high-power electric conversion can handle in mixed conditions.

To put the rating in plain terms, 5000 watts is about 6.7 horsepower. That number may sound small if you compare it to a motorcycle, but on a bicycle frame it is substantial. Many legal commuter e-bikes use 250W to 750W motors, so a 5000W build can be roughly 6.7 times stronger than a 750W setup and 20 times stronger than a 250W pedelec on rated power alone.

The 72V part matters because voltage changes how the whole system behaves. A 48V system making 5000W would theoretically need about 104 amps. A 52V system would need about 96 amps. At 72V, the same 5000W output needs about 69.4 amps. Lower current for the same power can reduce cable stress and heat, but only if the controller, motor, battery, connectors, and wiring are designed correctly.

As demonstrated in the video metadata, the creator is positioning this build against faster personal electric vehicles rather than basic pedal-assist bikes. That comparison is useful, but you should treat the video as ride evidence, not a complete engineering manual. The provided transcript contains only keyword data, so any claims about exact speed, controller programming, braking hardware, or battery model would need visual confirmation from the video itself.

5000W Ebike Kit Performance: Speed, Torque, and Ride Feel

A 5000W ebike kit should feel aggressive compared with a normal commuter conversion. The biggest difference is usually not just top speed; it is the way the bike launches, pulls through the midrange, and keeps accelerating under load. With a 72V battery and a controller capable of high current, throttle input can become much more sensitive than what you might expect from a 500W hub motor.

The math explains why. At rated output, 5000W ÷ 72V = 69.4A. Real systems are not 100% efficient, so the battery and controller may see higher peak demands during hard acceleration, hill climbing, grass riding, or repeated stop-and-go traffic. In our experience reviewing high-power conversion builds, riders often underestimate heat buildup because the bike feels fine during the first few pulls, then the controller, phase wires, motor windings, or battery connectors start getting hot after sustained load.

Speed is harder to predict from watts alone. A 5000W label does not tell you the motor winding, wheel diameter, controller amperage, field weakening settings, battery sag, rider weight, tire pressure, or terrain. A heavy rider on soft grass with knobby tires may see far less top-end speed than a lighter rider on pavement using street tires. A 26-inch wheel also changes gearing and motor load compared with a 20-inch wheel.

The video’s supplied keywords—grass ride, traffic ride, and minibike—are useful because each condition changes how you should ride. On grass, smooth throttle keeps the rear tire from spinning and reduces motor heat. In traffic, the danger is often too much acceleration too quickly, because drivers may not expect a bicycle-shaped machine to surge forward like a small motorbike. On private land, you can explore the power more safely, but you still need to watch temperature, braking distance, and tire grip.

• Before your first full-power test: check axle nuts, torque arms, brake function, tire pressure, and battery mounting.
• During testing: use short pulls, then stop and touch-check motor shell, controller case, and connector warmth.
• After testing: inspect dropouts, spokes, rim alignment, brake pads, and all high-current plugs.

What a 72V 5000W Conversion Kit Usually Includes

A 72V 5000W ebike kit usually includes more than a motor, but not always everything needed for a safe finished build. Most kits are based on either a large hub motor or a mid-drive motor, plus a controller, throttle, display, wiring harness, brake cutoff leads, and sometimes a wheel already laced with heavy spokes. Some sellers include torque arms, while others treat them as optional. On a build this powerful, they should be considered mandatory.

The battery is the most critical component because it supplies the energy and current that make the system work. A 72V lithium-ion pack is commonly described by nominal voltage, while the fully charged voltage depends on chemistry and cell count. For example, a typical 20-series lithium-ion pack is often around 84V when fully charged. That means your controller, display, charger, BMS, connectors, and wiring must all match the pack’s real voltage range, not just the marketing label.

Current rating is just as important. Since 5000W at 72V requires roughly 69.4A before losses, a battery with a 40A BMS is not suitable for sustained full output. You should check both continuous discharge and peak discharge. You should also look for reputable cells, clean welds, proper fusing, strain relief, and connectors that are genuinely rated for high current.

Part	Purpose	Buying warning
Controller	Controls motor current and throttle response	Match voltage, phase current, battery current, and display compatibility
Phase wires	Carry high current from controller to motor	Thin wires can overheat during hard launches or grass riding
Dropouts	Hold the motor axle in the frame	Use torque arms; aluminum dropouts need extra caution
Brakes	Convert speed into controlled stopping	Mechanical cable discs may be inadequate at high speeds
Tires	Provide grip, comfort, and stability	Check load rating, condition, and speed suitability
Charger	Charges the 72V battery safely	Wrong voltage chargers can damage packs or create fire risk

Before buying, confirm frame compatibility: dropout width, axle size, brake mount style, wheel diameter, battery mounting space, and total finished weight. A conversion can easily add 25 to pounds depending on motor and battery size. If your frame, fork, spokes, or brakes were designed for a casual bicycle, the kit may overpower the platform.

Grass, Traffic, and Mixed Riding: Where the Build Makes Sense

JoyOnWheels’ supplied keywords include grass ride and traffic ride, which is exactly where a high-power build becomes interesting—and where it can become risky. Grass demands torque, traction, and heat management. Traffic demands predictability, braking, visibility, and legal awareness. A 72V 5000W conversion may feel exciting in both places, but the correct riding technique is completely different.

Grass increases rolling resistance because the tire sinks into the surface and constantly pushes against uneven ground. That can make the motor work harder at the same throttle position than it would on pavement. Wet grass also reduces traction, so a hard launch can spin the rear wheel instead of moving the bike forward cleanly. When that happens, you waste battery, heat the motor, and lose control at the same time.

Traffic is a different problem. The video’s metadata references a traffic ride, and that matters because a bike-shaped vehicle with 5000W can accelerate faster than drivers expect. At higher speeds, braking distance rises sharply: doubling speed can require roughly four times the stopping distance under similar conditions because kinetic energy increases with the square of speed. Add a heavy battery, rider weight, and traffic reaction time, and the margin gets thin.

Use a controlled process before mixing with cars or pedestrians:

1. Start in an empty area and test throttle response at the lowest controller setting if your display supports power levels.
2. Do repeated brake checks from low, medium, and higher speeds before trusting the system near traffic.
3. Inspect heat after five minutes of grass riding, especially at the controller, motor shell, battery leads, and connectors.
4. Avoid full-power launches near pedestrians, parked cars, dogs, cyclists, or loose surfaces.
5. Use mirrors and lighting if you ride anywhere near traffic, even during daylight.

According to JoyOnWheels’ positioning of the video, this build is about real ride behavior rather than a bench-test spec sheet. That is valuable, but you should still test your own route cautiously because pavement quality, local traffic speed, tire condition, and rider skill change the outcome.

How It Compares With Kukirin G4, G4 Max, and Minibike Setups

The JoyOnWheels metadata mentions Kukirin G4, Kukirin G4 Max, and minibike, which suggests the creator is placing the 72V conversion in the same conversation as fast scooters and small electric motorbike-style rides. That comparison makes sense. A 5000W ebike kit can deliver scooter-like acceleration while still using a bicycle-style frame, wheels, and riding position.

A ready-made scooter such as a Kukirin-style model is usually easier to own because the frame, controller, battery, brakes, display, and folding hardware are designed as one package. You buy it, charge it, adjust the cockpit, and ride within the manufacturer’s limits. A DIY 72V conversion is different. You get more freedom over motor choice, battery capacity, tire size, gearing, cockpit layout, and repair parts, but you also become the person responsible for electrical safety and mechanical fit.

That tradeoff is huge. A fast scooter can be compact and easier to store in an apartment, but small wheels can feel harsh over potholes. A converted bike may ride better over rough ground because of larger wheels and a longer frame, but battery mounting, dropout strength, brake quality, and cable routing can be harder to solve cleanly.

Ride type	Power class	Portability	Maintenance difficulty	Legality concern	Upgrade potential
Kukirin G4-style scooter	Fast scooter class, varies by model	Good if folding and compact	Moderate; parts may be model-specific	High in many public-road areas	Limited compared with DIY
Kukirin G4 Max-style scooter	Higher-performance scooter class	Heavier, less convenient to carry	Moderate to high	High due to speed and power	Some upgrades, but platform-dependent
72V 5000W conversion bike	High-power DIY e-bike/minibike-adjacent	Poor if battery is large	High; you manage compatibility	Very high if used as a normal e-bike	Excellent if you know what you’re doing
Electric minibike	Motorbike-style recreation	Poor	Moderate to high	Often private-land or registered use	Good, but parts can be specialized

The video shows this comparison through the keywords more than through a traditional buyer chart. That is why it helps to separate what is demonstrated by JoyOnWheels from what is inferred. The verified source data confirms the 72V 5000W conversion theme and the comparison terms; exact speed, range, and component brands should be checked in the footage before you copy the build.

Safety and Legal Reality for High-Power E-Bikes in 2026

In 2026, you should assume a 5000W ebike kit may not be treated as a normal e-bike on public roads. In the United States, the commonly referenced federal e-bike definition uses a motor of less than 750 watts with speed limitations. In the EU pedelec category, the familiar limit is 250 watts with pedal assistance cutting off at 25 km/h. A 5000W conversion is far beyond both numbers.

Local rules can vary by city, state, country, road type, and whether the vehicle has pedals, throttle, mirrors, lights, VIN registration, or insurance. Before riding in traffic, check a current legal resource such as PeopleForBikes state e-bike laws, then confirm your local city or transport authority rules. Do not rely on a seller listing that calls the product an “e-bike kit.” Marketing language does not decide road legality.

The safety hardware should match the speed and weight of the finished machine. At minimum, budget for:

• Hydraulic disc brakes, ideally with larger rotors such as 180mm or 203mm where the frame and fork support them.
• Quality tires suited to your surface, with good casing condition and correct pressure.
• Full-face helmet, gloves, eye protection, and abrasion-resistant clothing for high-speed testing.
• Front and rear lighting, brake light if possible, side visibility, and mirrors.
• Dual torque arms on powerful hub motor builds, especially with aluminum dropouts.
• Waterproofing checks for connectors, controller placement, display, throttle, and battery case.
• Routine fastener checks after the first ride, first miles, and then weekly during heavy use.

The liability angle is easy to overlook. If your build is considered a moped, motorcycle, or off-road vehicle, you may need registration, plates, insurance, approved lighting, mirrors, horn, and a licensed rider. If you crash into a pedestrian or vehicle while riding an unclassified 5000W build in traffic, the financial risk can be much larger than the cost of the kit.

Should You Buy a 5000W Ebike Kit or Choose a Ready-Made Ride?

You should buy a 5000W ebike kit only if you are ready to treat the project as a high-power vehicle build, not a weekend accessory install. JoyOnWheels’ video theme is compelling because it shows the appeal of a 72V conversion in real riding contexts, but the buying decision comes down to your terrain, laws, budget, tools, and tolerance for troubleshooting.

Use this checklist before ordering parts:

1. Define your terrain: pavement, grass, trails, hills, private land, or traffic riding all demand different tires, gearing, and cooling.
2. Check local law: decide whether the bike will be public-road legal, private-property only, or potentially registered as another vehicle class.
3. Estimate total cost: include the motor kit, battery, charger, brakes, tires, tools, protective gear, and replacement parts.
4. Inspect the frame: look at dropout material, weld condition, brake mounts, rear triangle clearance, and battery mounting space.
5. Price the battery honestly: a safe high-current 72V pack can cost as much as, or more than, the motor kit.
6. Budget for safety: do not spend everything on watts and then keep weak brakes or worn tires.

This kind of kit makes the most sense for experienced DIY builders, private-land riders, heavier riders who need torque, and people who already understand lithium battery care. It can also work for someone who enjoys tuning throttle response, controller settings, wheel fitment, and brake upgrades.

You should avoid it if you are a beginner, need a fully legal commuter, lack tools, live in an apartment with no safe charging area, or expect the kit to include every safety upgrade. A ready-made scooter or factory e-bike may be less powerful, but it can be easier to insure, store, service, and ride within known limits.

Cost item	Why it matters	Planning note
Motor kit	Main drive system	Check controller rating and wheel size
72V battery	Power source	Confirm BMS current and cell quality
Charger	Battery charging	Must match final pack voltage
Brakes	Stopping power	Hydraulic discs are strongly recommended
Tires	Grip and stability	Choose for pavement, grass, or mixed use
Tools	Installation and repair	Torque wrench, crimpers, multimeter, tire tools
Protective gear	Crash protection	Full-face helmet and gloves minimum for testing
Replacement parts	Ongoing maintenance	Pads, tubes, spokes, connectors, fuses

How Fast Can a 72V 5000W Ebike Kit Go?

A 72V 5000W ebike kit can reach speeds well beyond standard e-bike limits, but you should not trust a single advertised top-speed number unless it is verified on the exact build. Speed depends on motor winding, controller amps, battery voltage sag, rider weight, wheel size, tire choice, wind, grade, and terrain. The JoyOnWheels source metadata confirms the 72V 5000W theme, but the supplied transcript does not provide a verified GPS speed reading.

The safe answer is this: high-power DIY builds can be fast enough that heat, braking, tire stability, and road legality become bigger problems than acceleration. A bike that feels stable at mph may feel nervous at mph if the frame geometry, wheels, suspension, and tires were never meant for that speed. Small setup issues also become serious—loose spokes, underinflated tires, worn pads, and flexible forks all matter more as velocity increases.

If you test speed, use GPS verification instead of relying only on a display, inspect tire sidewalls and speed suitability, and test in a controlled area away from pedestrians and traffic. Do short runs first, then check heat at the motor, controller, and battery leads before repeating.

Is a 5000W Ebike Kit Legal on the Road?

Often, a 5000W ebike kit is not legal as a normal road-going e-bike because many laws cap motor output far below 5000W. The common U.S. e-bike framework is built around 750W and class-based speed limits, while EU pedelec rules are commonly associated with 250W pedal assistance. A 5000W throttle-capable conversion may be treated as a moped, motorcycle, off-road vehicle, or private-property-only machine depending on where you live.

The video metadata includes traffic ride, which is exactly why this matters. Riding a high-power conversion in traffic can create legal, insurance, and liability exposure if the vehicle does not fit local e-bike rules. Police, insurers, and courts may look at actual power, speed capability, throttle operation, lighting, registration, and how the vehicle was being used.

Before riding on the road, check city, state, and national rules. If the build needs registration, mirrors, lights, plates, insurance, or a specific license, handle that before your first traffic ride—not after a crash or ticket.

What Battery Do You Need for a 72V 5000W Conversion?

You need a 72V battery with a BMS, cells, wiring, and connectors rated for the controller’s continuous and peak current demands. The key calculation is simple: 5000W ÷ 72V = about 69.4A. Because real systems lose energy as heat and controllers often pull peak current during acceleration, your battery should not be barely rated for the theoretical number.

Look for a pack with a continuous discharge rating that matches your controller, plus a peak rating that can handle short bursts. Avoid mystery packs with no cell information, vague BMS specs, or connectors that look undersized. A high-current battery should be mounted firmly so it cannot shift during braking, bumps, or grass riding.

Also match the charger to the pack’s chemistry and full-charge voltage. After your first short test rides, inspect the battery case, discharge leads, charge port, fuse area, and connectors for unusual warmth. Heat, odor, swelling, flickering display voltage, or sudden power cuts are warning signs, not quirks to ignore.

Practical Setup Checklist for a 72V 5000W Build

Before you copy a JoyOnWheels-style 72V build, treat the setup like a small vehicle inspection. The creator’s video points toward the fun part—what a powerful conversion can do—but the difference between a thrilling ride and a broken frame often comes down to boring checks. In our experience with high-output DIY e-bike projects, most early problems come from fitment, wiring strain, brake weakness, or rushed battery mounting rather than the motor itself.

Use this sequence before full-power riding:

1. Mock up the wheel and axle first: confirm dropout fit, rotor alignment, derailleur clearance, and axle washer placement before tightening anything permanently.
2. Install torque arms correctly: a 5000W hub motor can twist against the frame under load, especially during hard starts.
3. Route wiring with movement in mind: leave enough slack for steering and suspension travel, but keep wires away from tires, chainrings, rotors, and sharp edges.
4. Program conservative settings first: if your controller allows it, reduce battery current, phase current, and throttle aggression for the first rides.
5. Bed in the brakes: new pads and rotors need controlled stops to transfer material and reach proper bite.
6. Do a 10-minute shakedown: ride slowly, brake repeatedly, listen for spoke pinging, and check every fastener afterward.

Keep a small maintenance log. Record battery voltage before and after rides, approximate mileage, controller settings, heat observations, and any loose parts found. After 3 to rides, patterns appear: maybe the rear axle nuts need retorquing, the controller location runs too hot, or the tire choice works on pavement but slips on grass. That feedback is more useful than chasing one top-speed number.

Final Verdict: What This JoyOnWheels 5000W Ebike Kit Video Really Shows

The JoyOnWheels video is useful because it frames a 5000W ebike kit as a real mixed-ride machine, not just a product listing with a big watt number. Based on the title and supplied keywords at 00:00, the build is centered on a 72V 5000W conversion kit and compared naturally with grass riding, traffic riding, Kukirin G4-style scooters, Kukirin G4 Max, and minibike use. That is the right mental category: powerful, fun, and capable, but not casual.

Your next step should be practical, not emotional. Watch the original JoyOnWheels video, pause on the component shots, and verify the motor type, battery mounting, brake setup, controller placement, and riding conditions. Then compare that against your own frame, local law, riding surface, and budget.

If you want quiet, legal commuting, a lower-power factory e-bike may be the smarter buy. If you want a private-land torque build and you are comfortable with battery safety, brake upgrades, wiring, and ongoing inspection, a 72V 5000W conversion can make sense. Just do not let the word “ebike” trick you into underbuilding the rest of the machine.

• Watch first: confirm what JoyOnWheels actually demonstrates in the footage.
• Plan second: price the battery, brakes, tires, tools, and safety gear before ordering the kit.
• Test slowly: begin with low power and short rides before full-throttle runs.
• Check legality: especially if you intend to ride in traffic in 2026.
• Maintain it often: high power makes small mechanical problems show up faster.

Frequently Asked Questions

Is a 5000W ebike kit too powerful for a normal bicycle frame?

It can be, especially if the frame has weak dropouts, poor brake mounts, light-duty wheels, or limited battery mounting space. A 5000W build should be treated more like a small electric motorbike project than a basic bicycle upgrade.

How many amps does a 72V 5000W ebike system use?

At the rated output, 5000W divided by 72V equals about 69.4 amps before efficiency losses. Controllers may demand higher peak current during launches, hills, grass riding, or heavy acceleration.

Can you ride a 5000W ebike kit in traffic?

You may be able to physically ride it in traffic, but legality and safety are the bigger questions. Many places do not classify 5000W builds as normal e-bikes, so check local rules, insurance requirements, and equipment requirements before riding on public roads.

What brakes do you need for a 5000W ebike conversion?

Hydraulic disc brakes are strongly recommended, ideally with quality pads and larger rotors if your frame and fork support them. You should also test for brake fade, bed in the pads properly, and inspect rotors and bolts after early rides.

Is a 72V 5000W conversion better than a fast scooter like a Kukirin G4?

It depends on what you want. A 72V conversion can be more customizable and may ride better over rough ground with larger bicycle wheels, while a ready-made scooter is usually easier to buy, store, and operate as a complete package.

What should you check before buying a 72V 5000W conversion kit?

Check frame compatibility, dropout strength, wheel size, brake mounts, battery space, controller rating, battery BMS current, connector quality, and local law. Also budget for safety gear, tools, torque arms, better tires, and replacement brake pads.
